Ductless Mini-Split Installation in New Jersey

Why this matters so much in New Jersey

A large share of this state's housing was built before ducted heating was normal. Hudson, Essex, Passaic and the older parts of Bergen and Mercer are dominated by houses and multi-family buildings heated by steam or hot water radiators — which means there is no duct system to attach cooling to, and often nowhere sensible to put one.

Retrofitting ducts into a finished period house means losing closet space, dropping ceilings and opening plaster. A mini-split needs a three-inch hole per head.

One outdoor unit, several indoor heads

A single-zone system pairs one outdoor unit with one head — good for a converted attic, a sunroom, or a room the existing system never reaches. A multi-zone system runs several heads from one outdoor unit, each controlled separately, which is how a whole house is done.

It heats too, and that is the point

People still think of these as cooling equipment. Modern units are heat pumps — they heat efficiently, and cold-climate models hold useful output well below freezing. In a house with no ducts and expensive oil or propane heat, that combination is frequently the strongest argument on the table.

How many heads do I need?

This is where quotes diverge most, and where oversizing is as common as it is with central air.

One per zone, not one per room

A head serves an open area. A large open-plan living and dining space is one zone; four small bedrooms off a hallway are usually four, because the doors close. Where rooms are small and doors stay open, a single well-placed head can cover more than people expect.

The oversizing trap applies here too

Multi-zone systems are frequently specified with more capacity than the house needs, and the symptom is the same as with central air — short cycling, poor dehumidification, a clammy room. Ask for the load calculation per zone.

Ceiling cassettes and floor units exist

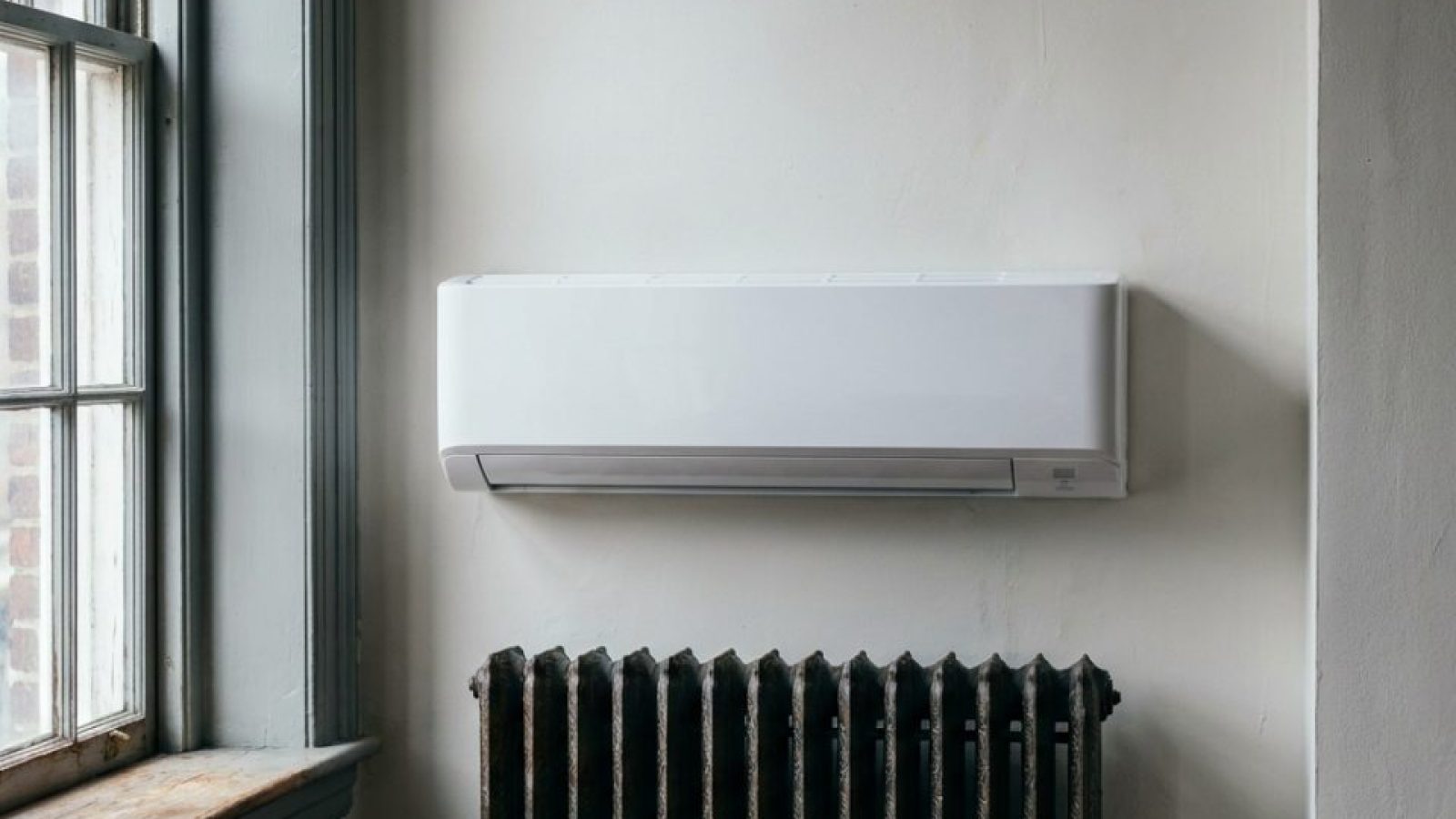

The wall-mounted head is the common form but not the only one. Ceiling cassettes recess into a dropped ceiling, and floor-standing units sit where a radiator would — which suits period rooms where a high wall unit would look wrong.

What installation involves

Less than people expect, which is much of the appeal.

The physical work

A pad or bracket for the outdoor unit, a three-inch core hole per head, the line set and condensate drain run between them, and an electrical circuit. A single-zone install is often a day. Multi-zone runs longer, mostly because each head needs its own line set routed and concealed.

Where the line sets run matters aesthetically

Externally they are usually enclosed in a covering channel. On a period façade, or anywhere visible from the street, agree the route before work starts — this is the commonest source of disappointment on an otherwise good installation.

Condo, co-op and historic district approval

In a multi-family building the outdoor unit almost always needs board approval, and in a historic district what may be attached to an exterior wall can be restricted. Establish this before equipment is ordered, not after.
